Published RGB Filter Validation

Stack

Yang et al. Scientific Reports 5, 9285

This page statically reproduces the normal-incidence transfer-matrix setup from Figures 1 and 2 of Compact Multilayer Film Structure for Angle Insensitive Color Filtering.

The calculator handoff uses the same RGB layer thicknesses and a-Si optical constants. The plot on the right is rendered locally with the same chart template used by the tutorial pages.

Published Reference Figure

reference stack, spectra, and colors

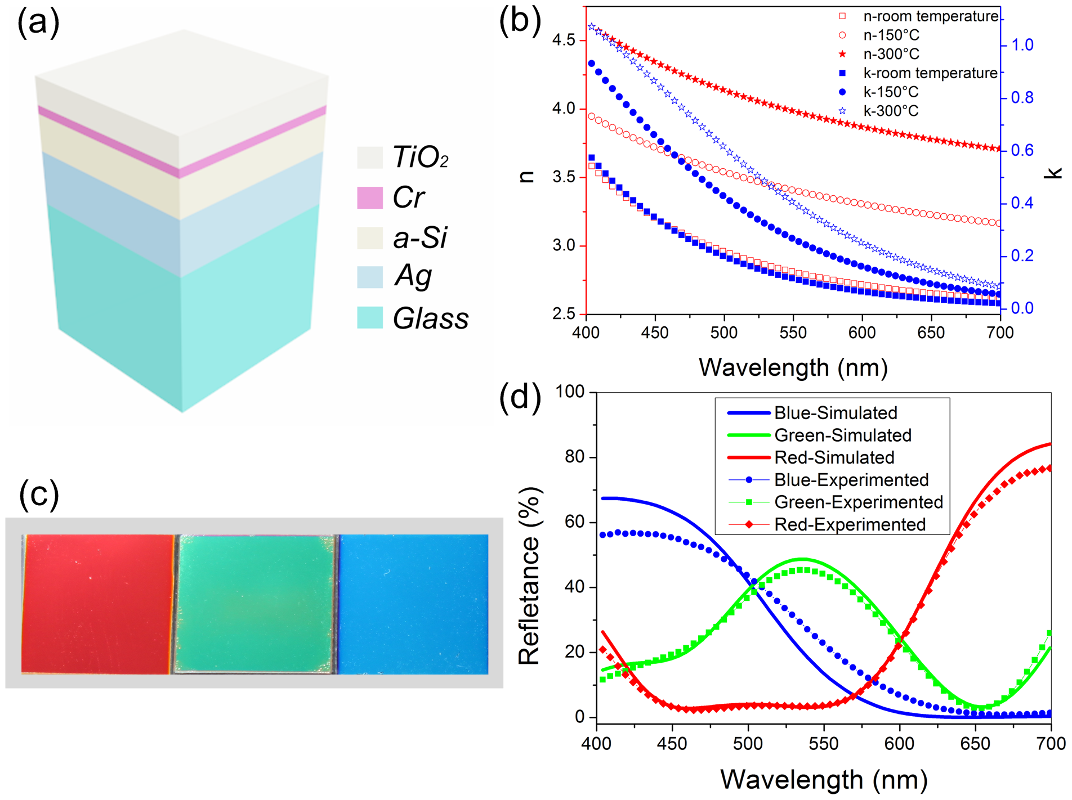

Figure 1 from Yang et al. showing the TiO2, Cr, a-Si, Ag, glass stack, a-Si optical constants, RGB samples, and normal-incidence reflection spectra. — Figure 1: filter stack, a-Si optical constants, RGB samples, and normal-incidence simulated and measured reflectance spectra.

Figure reproduced from Yang et al., Sci Rep 5, 9285 (2015), under CC BY 4.0.

Selected Published Stack

red filter

Layer Optical Data n k d (µm) Coherence Source

open design in calculator

Thicknesses are taken from the published red, green, and blue reflective filter designs. n and k are shown at 0.550 µm for orientation.

Spectra / Colors

Reproduced Reflectance Spectra

normal incidence, air side

Calculated Reflection Colors

D65, CIE 1931 2°, sRGB estimate

Swatches are computed from the reflected spectrum between 400 and 700 nm, matching the local material-data window used for this validation plot.
